MicroFittings® Luer Fittings
MicroFittings® Luer to Microbore FittingsThese MicroFittings® connectors are designed to work as a bridge between small bore flexible tubing, such as Tygon® Microbore, and other standard fractional flexible tubing. They are made using a 304 stainless steel hypodermic needle tube inserted into a proprietary polypropylene Luer adapter body. With a single reusable Microfitting, you can now transition from one of 5 Tygon® Microbore tubes sizes, to either a male or female Lure fitting. The precision fit of the stainless steel needle tubing, ensures a secure connection over the entire length of the insert. Please see Tygon® Microbore online product information to ensure their tubing is right for your application. To purchase these connectors, please visit our Distributors page. |

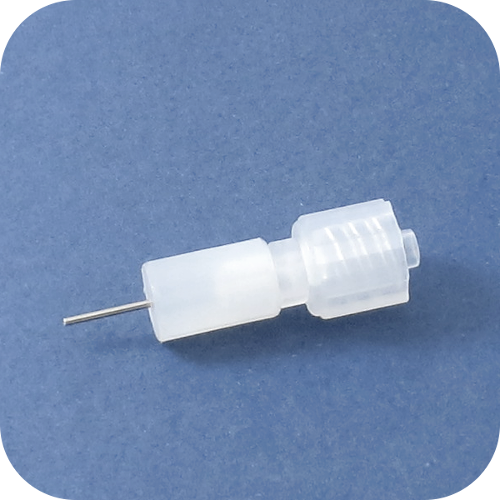

MicroFittings® Male Luer
|
||||
Part Number |
For Tubing I.D. |
Fitting O.D. |
Fitting I.D. |
Works With Tygon® Part Number(s) |
MT106001 |
0.010" |
.012/.0125 |
.0055/.007 |
AAQ04091 & AAD04091 |
MT106002 |
0.020" |
.02/.0205 |
.0095/.011 |
AAQ04103 & AAD04103 |
MT106003 |
0.030" |
.032/.0325 |
.0195/.021 |
AAQ04119 & AAD04119 |
MT106004 |
0.040" |
.0415/.0425 |
.0255/.0285 |
AAQ04127 & AAD04127 |
MT106005 |
0.050" |
.0575/.0585 |
.0405/.0435 |
AAQ04133 & AAD04133 |
MicroFittings® Female Luer
|
||||
Part Number |
For Tubing I.D. |
Fitting O.D. |
Fitting I.D. |
Works With Tygon® Part Number(s) |
MT106101 |
0.010" |
.012/.0125 |
.0055/.007 |
AAQ04091 & AAD04091 |
MT106102 |
0.020" |
.02/.0205 |
.0095/.011 |
AAQ04103 & AAD04103 |
MT106103 |
0.030" |
.032/.0325 |
.0195/.021 |
AAQ04119 & AAD04119 |
MT106104 |
0.040" |
.0415/.0425 |
.0255/.0285 |
AAQ04127 & AAD04127 |
MT106105 |
0.050" |
.0575/.0585 |
.0405/.0435 |
AAQ04133 & AAD04133 |
